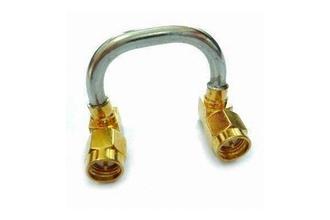

Simi-rigid coaxial cable
Simi-rigid coaxial cable

Simi-rigid coaxial cable

Add to Basket

Basic Info

    Model No.: CPC 130

Product Description

Simi-rigid coaxial Cable Assembly is one of a huge selection of coaxial cable assembly for radio, antenna and interconnect with RF components. RF Coaxial Cable Assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. SMA plug to SMA plug Coaxial Cable Assembly, like our other coaxial Cable Assemblies, is specifically ready for quicker shipment than most in the industry can provide.

This SMA coaxial cable assembly is manufactured with SMA cable connection on one end and a SMB cable connection on the other end. Our SMA cable assembly has a male gender on end one and plug on end two. SMA coaxial assembly design and will ship quickly after the purchase.

Product key features


Electric data

Characteristic impedance

50 ohms

Frequency range

0-6GHz

Working voltage

335 VRMS (max at sea level)

Dielectric withstanding Voltage

1000 VRMS (min at sea level)

VSWR

Straight: ≤1.3
Straight with semi-rigid cable ≤1.05+0.01f
Straight with flexible cable ≤1.15+0.02f
R/A: ≤1.5
R/A with semi-rigid cable ≤1.10+0.01f
R/A with flexible cable≤1.20+0.03f

Contact resistance

Inner: 3 milliohms (max)
Outer: 2 milliohms (max)

Insulation Resistance

5000 mega ohms (min)

Mechanical data

Durability mating

500 cycles min

Material data

Connector parts

materials

plating finish

Body

brass

gold or customized

Male pin

brass

gold or customized

Female pin

phosphor bronze

gold or customized

Insulators

PTFE

N/A

Gasket

silicone rubber

N/A

Ferrules

copper alloy

nickel

Environmental data

1.

Temperature range: -55 to +155℃

2.

RoHS Directive-compliant

SMA simi-rigid RF cable

sma cable

Looking for ideal Simi-rigid Coaxial Cable Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the SMA Simi-rigid Coaxial Cable are quality guaranteed. We are China Origin Factory of Simi-rigid RF Cable Assembly. If you have any question, please feel free to contact us.

Product Categories : RF Coaxial Cable Assemblies > RF Extension Cable Assembly
