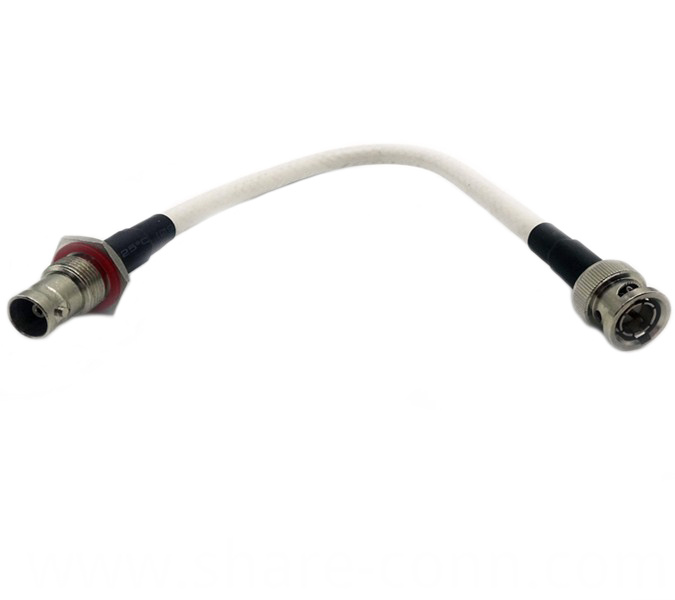

BNC extension cable assembly

BNC extension cable assembly

Add to Basket

Basic Info

    Model No.: CPC 023

Product Description

BNC extension coaxial Cable Assembly

It's suitable for Long-distance transmission,BNC extension coaxial cable assembly is Used to lead the antenna to the place the signal is strong.Commonly Used in RF Applications, Antennas, Wireless LAN Devices ,Coaxial cable,External Antenna, The Two BNC Male connectors Material:Pure Copper ,Nickel Plated. 50-3 50 Ohm BNC Coaxial extend cable is high frequency low loss ,low impedance,Transmission performance,Pure Copper inner.

Bnc Coaxial Cable

Electric data
Characteristic impedance 50 Ohms or 75 Ohmes
Frequency range 0-6GHz
Working voltage 335 VRMS (max at sea level)
Dielectric withstanding voltage 1000 VRMS (min at sea level)
VSWR Straight: ≤1.3
Straight with semi-rigid cable ≤1.05+0.01f
Straight with flexible cable ≤1.15+0.02f
R/A: ≤1.5
R/A with semi-rigid cable ≤1.10+0.01f
R/A with flexible cable≤1.20+0.03f
Contact-resistance Inner: 3 milliohms (max)
Outer: 2 milliohms (max)
Insulation-resistance 5000 mega ohms (min)
Mechanical data
Durability mating 500 cycles minute
Material data
Connector parts materials plating finish
Body brass gold or customized
Male pin brass gold or customized
Female pin phosphor bronze gold or customized
Insulators PTFE N/A
Gasket silicone rubber N/A
Ferrules copper alloy nickel
Environmental data
1. Temperature range: -55 to +155°C
2. RoHS Directive-compliant


BNC extension cable

Looking for ideal BNC Plug Cable Assemblies Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the BNC Coaxial Cable Assemblies are quality guaranteed. We are China Origin Factory of BNC Extension Cable. If you have any question, please feel free to contact us.

Product Categories : RF Coaxial Cable Assemblies > RF Extension Cable Assembly
